AD Max

(0 review)

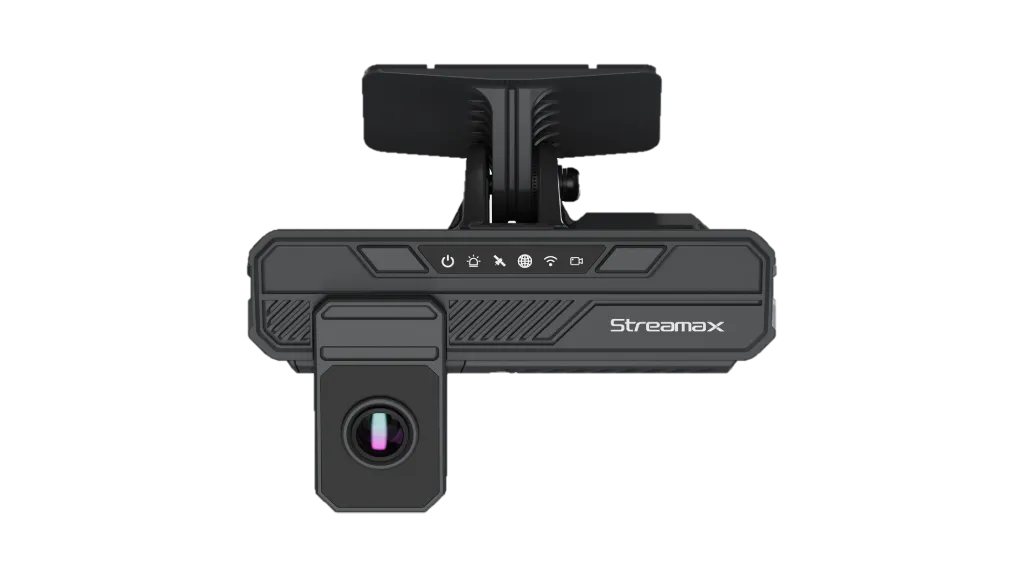

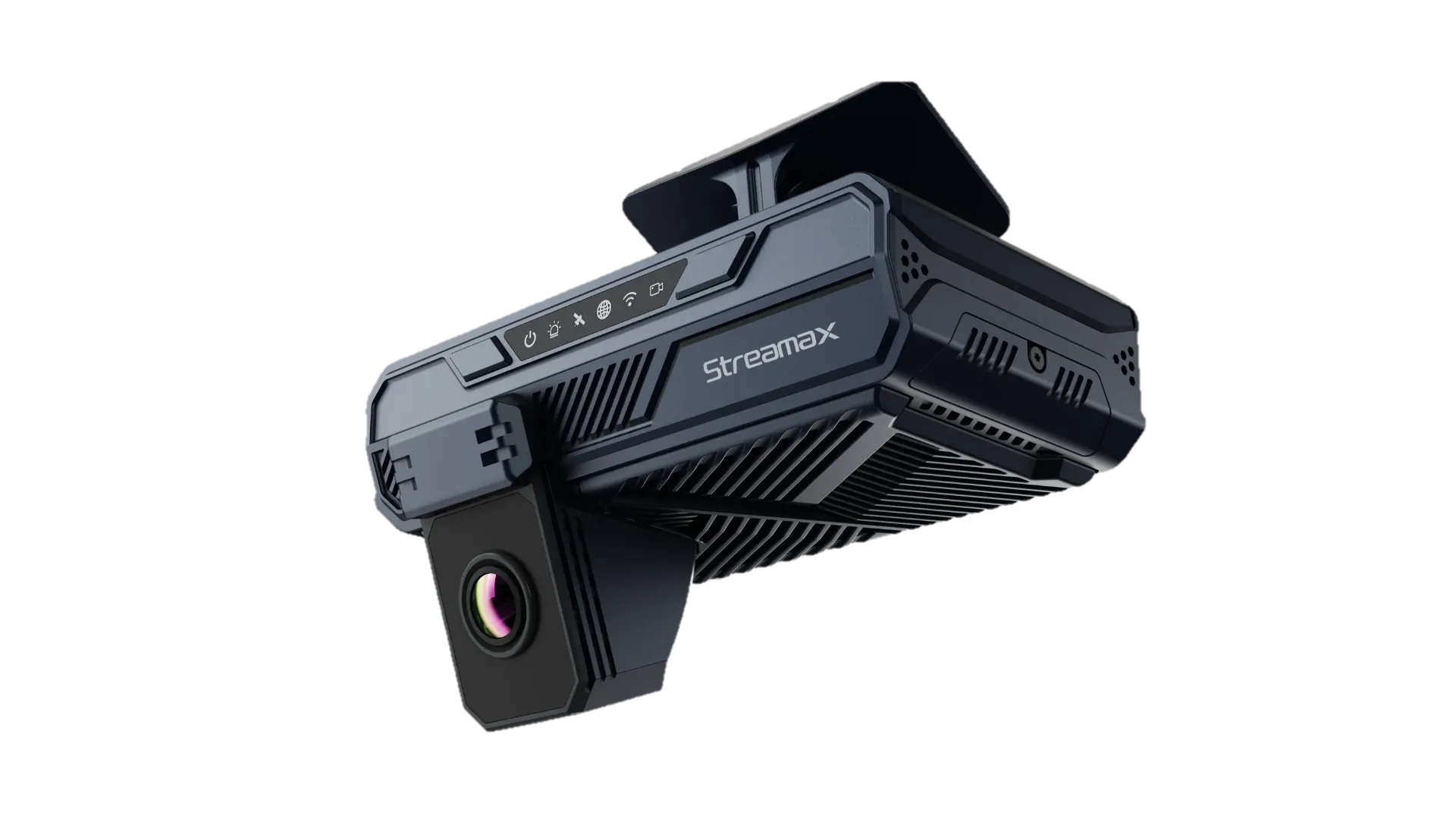

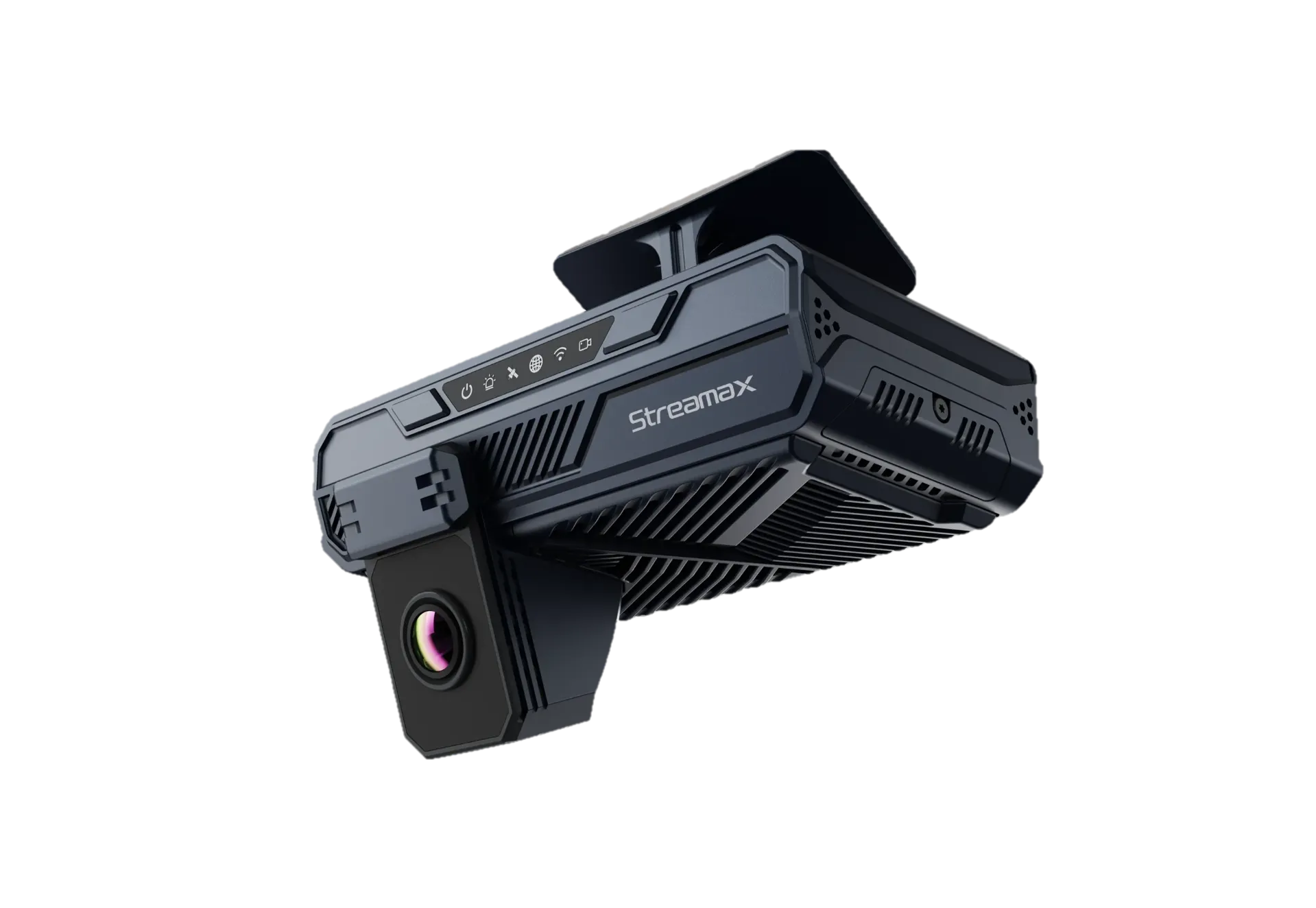

AD Max is an AI-powered 6-channel dash cam that covers all scenarios both inside and
outside the vehicle. It is designed to enhance driver safety and improve fleet management
efficiency. Leveraging advanced AI technology, it actively detects risky driving events and
unsafe behaviors, providing real-time alerts to drivers to help avoid potential hazards. The
system also uploads event data to the fleet management platform for driver training
purposes. Additionally, it transmits real-time vehicle location and operational data to the
platform, offering high-quality remote communication and video playback to streamline

fleet management and boost overall efficiency

Product Features

  • Built-in 4MP front-road black light, with a wider horizontal field of view and clearer images at night
  • Built-in 4MP rear-facing cabin lens, delivering higher-definition image quality and a wide viewing angle that eliminates blind spots.
  • Supports 1* AHD and 3* IPC cameras, enabling simultaneous recording on up to 6 video channels for complete inside and outside vehicle coverage

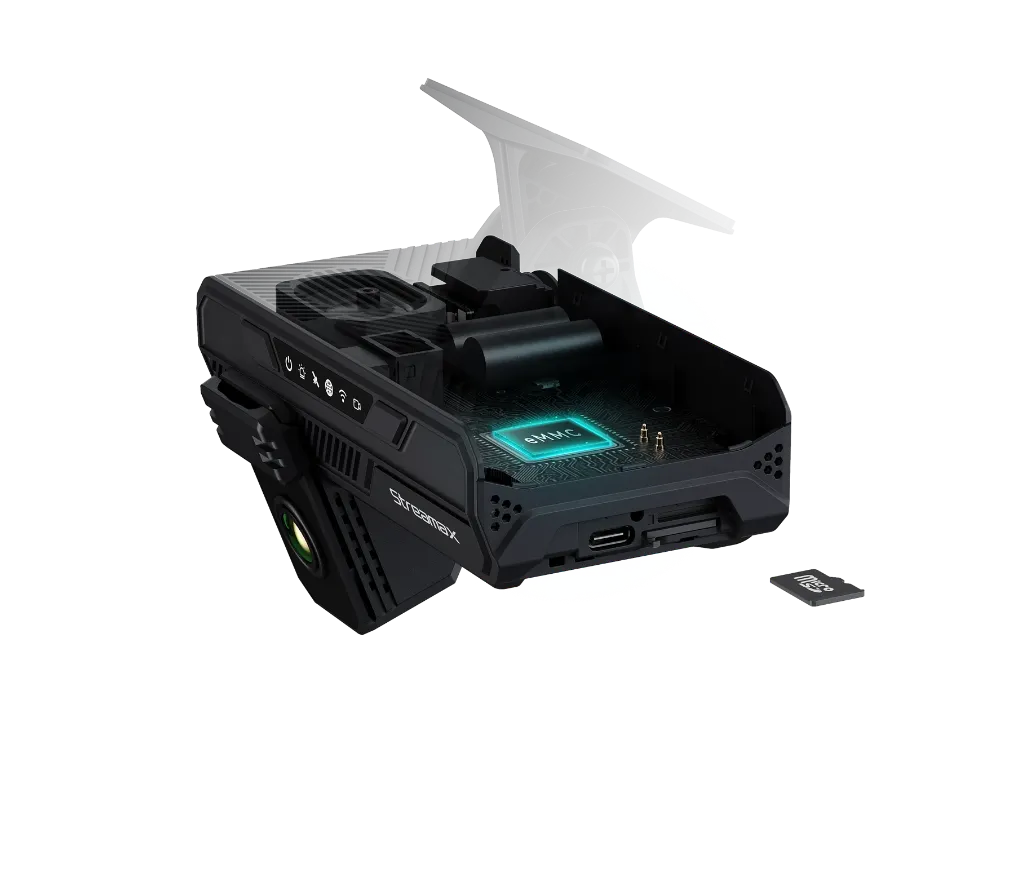

  • Built-in eMMC on-board chip-level storage (up to 256GB) ensures stable and secure storage of critical footage, preventing data loss.
  • Supports 1* Micro SD card (up to 1TB) alongside internal eMMC storage, with simultaneous recording of main and sub-streams.
  • Built-in Wi-Fi, Bluetooth, and 4G modules for seamless network connectivity.
  • Integrated inertial navigation module provides high-precision positioning for real-time vehicle location tracking.
  • Features AES256 encryption and TLS1.3 protocol to fully protect data from unauthorized access.
  • Includes 3*IO inputs, 1*IO output, 1*I Button interface, 1*CAN channel, and 2*RS232 channels.
  • Built-in DSC lens privacy cover effectively protects driver privacy when the vehicle is parked.
  • Plug-and-play power supply via OBD interface eliminates the need for vehicle modification, making installation quick and effortless.
  • Echo cancellation algorithm significantly improves two-way intercom quality for smooth, noise-free communication.
  • Supports parking sleep mode, with wake-up via remote 4G platform, IO, vehicle vibration, and other methods, adapting to various usage scenarios.
  • Upgrade to Power Box Plus 2.0 to access vehicle CAN bus data analysis and gain complete control over vehicle status information.
  • Built-in 6-axis gravity sensor accurately detects aggressive driving behaviors such as rapid acceleration, hard braking, and sharp turns, helping to promote standardized driving.

   AD Max-datasheet-.pdf
