CP4

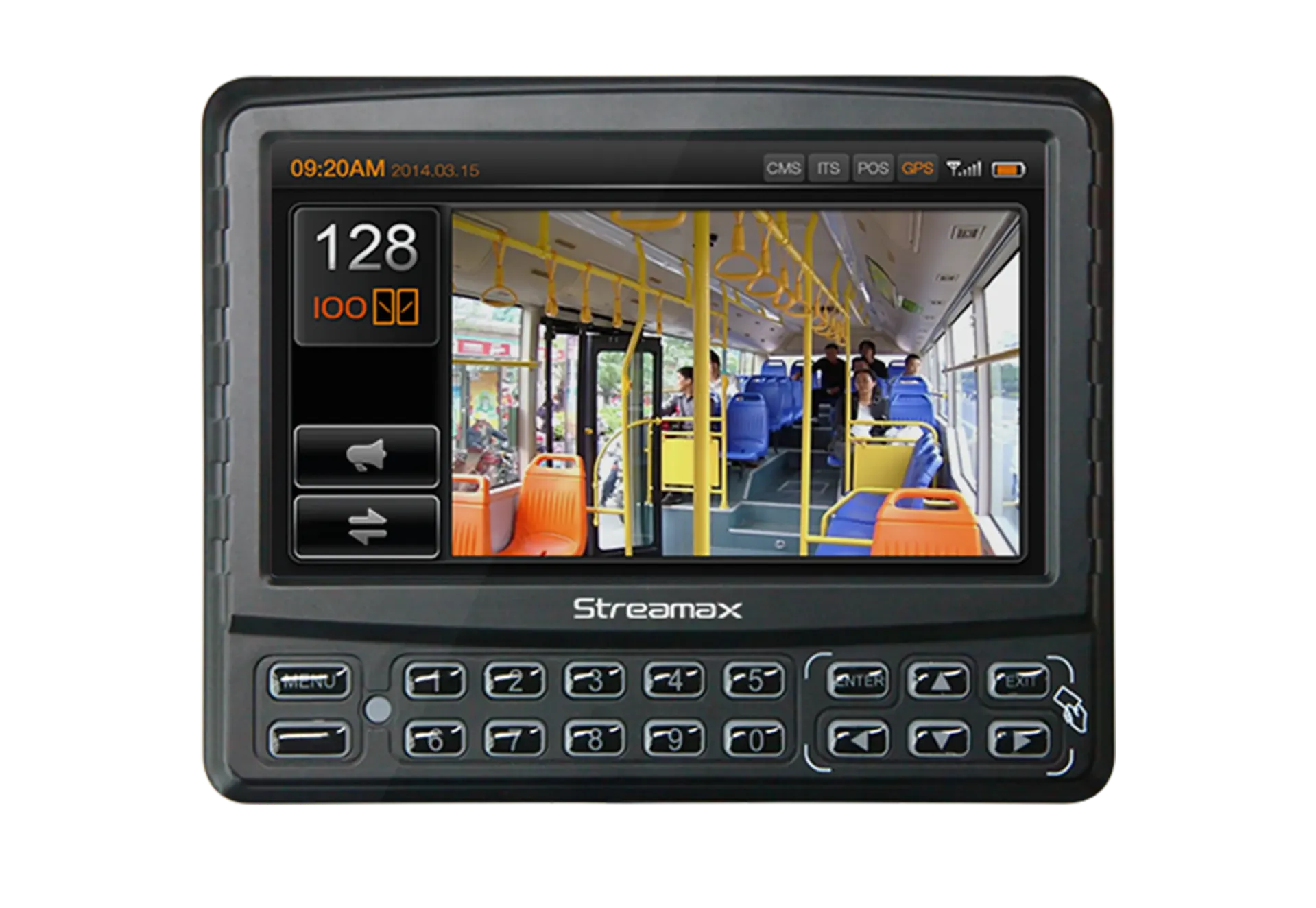

CP4 is a control panel used for MDVR. Adopted with 18 buttons, 7 inches large screen display, it also integrates with features of SMS, reversing monitor etc..It is widely applied to domestic and overseas School bus systems for its easy installation, powerful features and convenient operation

Product Features

• CP4 controls MDVR via RS232 serial port and driver can setup MDVR on CP4.The function of CP4 is similar to remote control. Besides, it also can setup the menu of MDVR.
• Menu and video can be transmitted to CP4 via pass through mode. CP4 can setup the other functions of MDVR, such as record and playback
• There is an AV aviation-din on CP4, drivers can connect the camera with CP4. It is not used for recording or monitoring, but to view the reversing vehicle and other live view. Besides, there is a sensor using to connect with I\O signal, which is to switch the pictures of camera
• Built-in 2 speakers(16Ω, 2w), they are used to broadcast messages and some prompts
• Connect with microphone and MDVR, it can realize the functions of IP connection and making calls.
