M1N 2.0

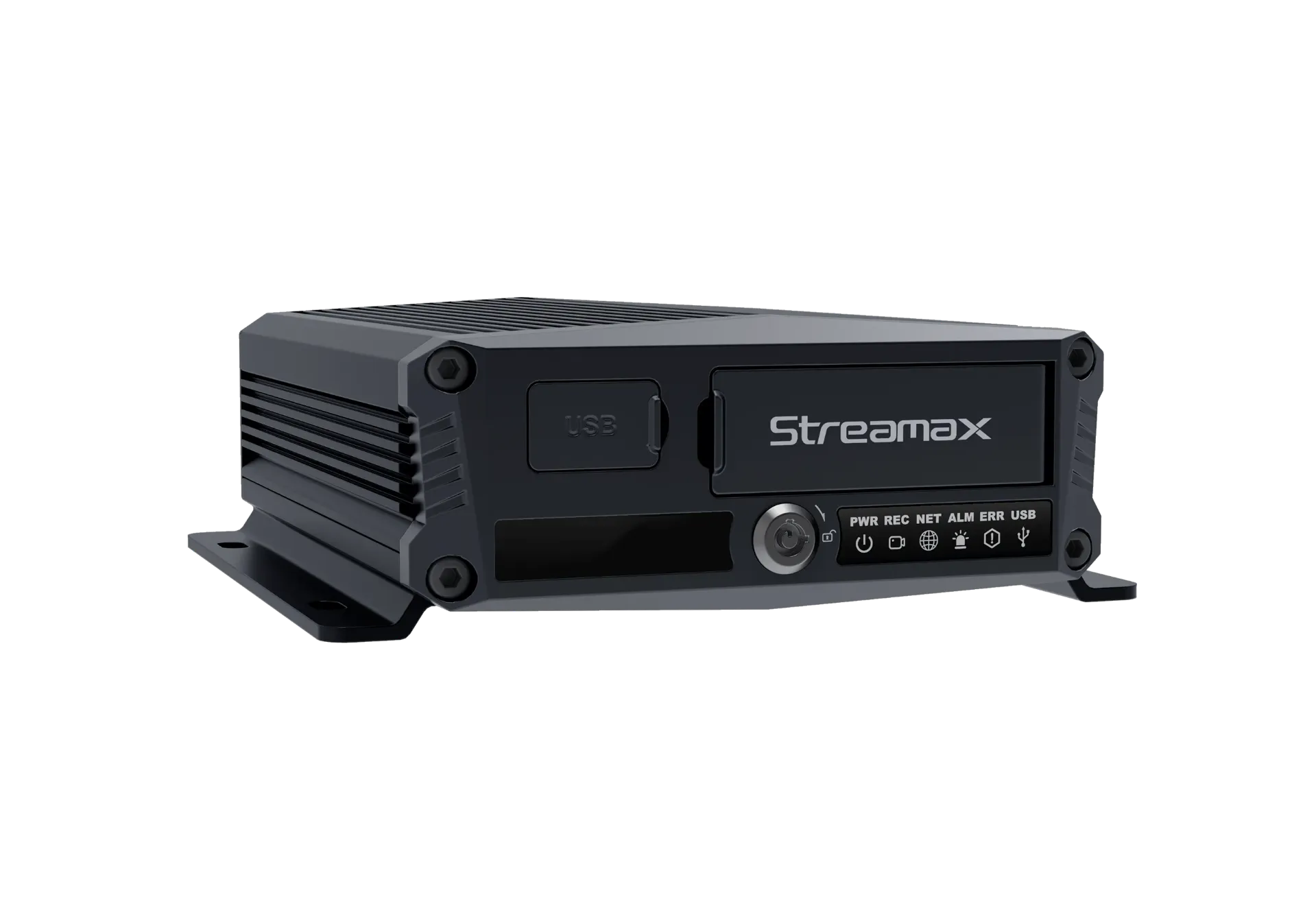

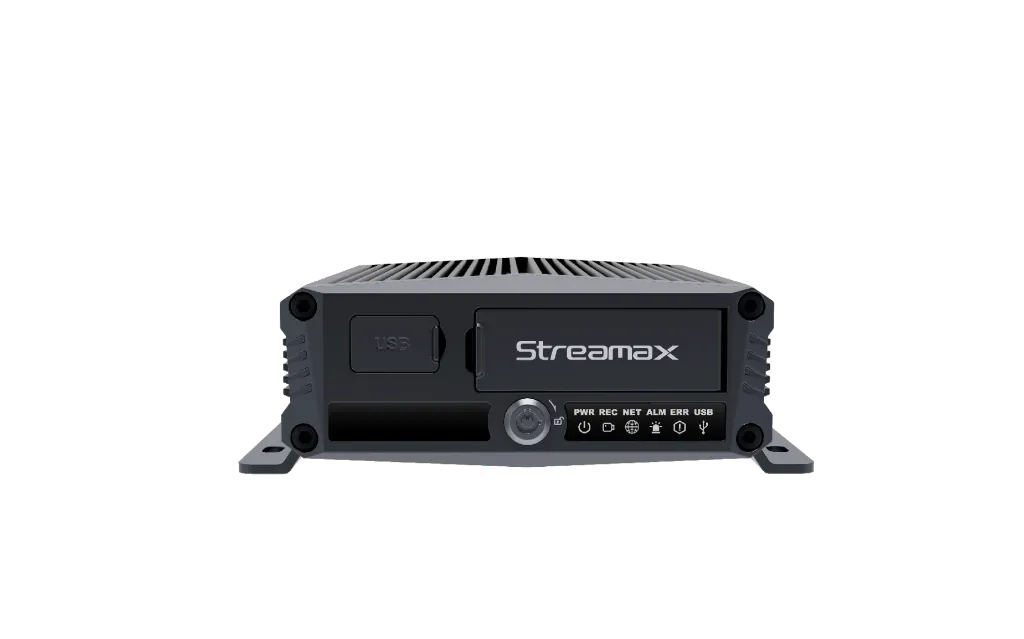

M1N2.0 is a multifunctional in-vehicle intelligent terminal composed of storage module, encoding module, communication and power module, etc., with the integration of in-vehicle video monitoring, platform remote video monitoring, and driver driving behavior analysis.

It has a powerful video access and encoding capabilities, maximum support for 4Ch AHD and 2Ch IPC . Can simultaneously support 6Ch 1080P@30fps full HD real-time full frame encoding and recording capabilities, to ensure that the video quality frame rate is not lost.

The product has built-in rich wireless communication capability, supporting 4G/3G high-speed network, WIFI wireless network, and GPS/BDS/GALILEO/GLONASS multi-band quad-constellation global GNSS positioning system at the same time.

Products built-in powerful NPU processing capabilities, based on AI algorithms, can support 2Ch built-in AI, which can fully cover ADAS, DMS, BSD. effectively improve driver safety driving and reduce pedestrian-vehicle traffic accidents

At the same time, M1N2.0 has a strong anti-interference ability of the vehicle environment, the product meets the ISO16750, ISO7637 vehicle test standards, to meet the use of different vehicle types installed

Product Advantages

• Supports 4Ch AHD and 2Ch IPC;
• Full HD 6Ch 1080P@30fps real-time full-frame encoding in video-only case;
• Supports AHD HD video output;
• Optional support for digital SIM card technology (eSIM), more resistant to temperature and vibration; extended support for 4G main and hierarchical antennas.
• Supports GPS/BDS/GALILEO/GLONASS for more accurate positioning; external waterproof antenna with IP67 rating.
• External interface automotive-grade, high-
• precision quick-release connectors support quick disengagement for easy installation and maintenance;
• High-speed processor and powerful neural network inference engine with built-in AI;
• Supports 2Ch Micro SD , up to 2*512G; additional support for 1*M.2 SSD storage, up to 1*2TB

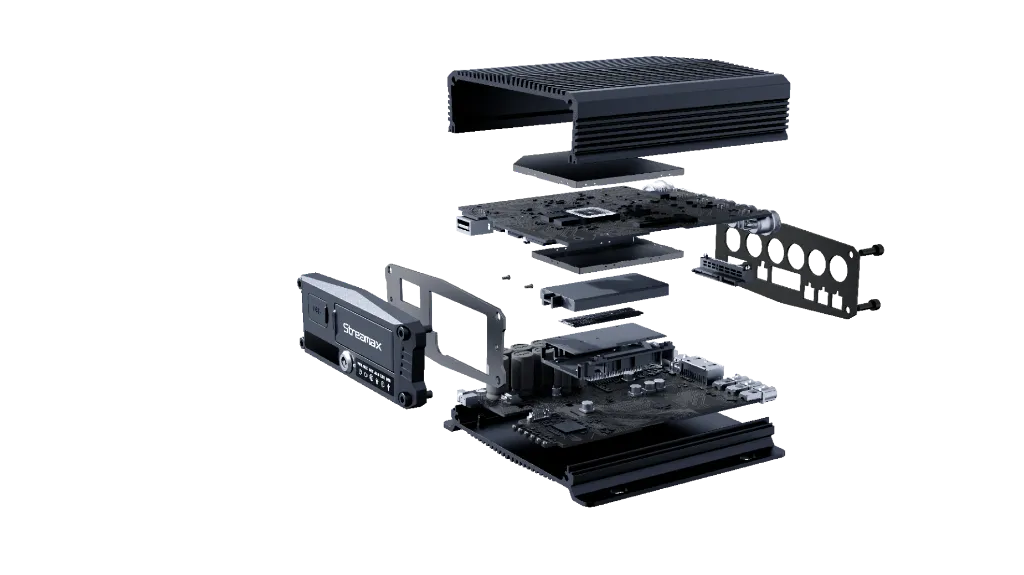

• The whole system adopts mechanical vibration reduction, electronic vibration prevention and software vibration prevention, a combination of three comprehensive vibration reduction technology;
• Rich peripheral interfaces.

M1N 2.0 datasheet.pdf
